3151智能電子式磁翻板液位計測量的盲區怎樣判定?
西安華恒變送器制造商已經開發出傳感器和智能電路板這兩項核心技術。 不僅掌握了所有產品的所有核心組件技術，而且工業自動變送器制造商的精度也在不斷提高，從0.2提高到0.1。 通過擴展精通的核心技術，它還可以改變其他測量流量和溫度的產品,華恒儀表-液位變送器廠家生產的3151智能型液位變送器在立足西北工業動化工業生產的過程中相對重要的儀器儀表.所測液體靜壓與該液體高度成正比的原理，采用擴散硅或陶瓷敏感元件的壓阻效應，將靜壓轉成電信號。經過溫度補償和線性校正，轉換成4-20mADC標準電流信號輸出。
Xi'an Huaheng transmitter manufacturer has developed two core technologies, sensor and intelligent circuit board. Not only master all core component technologies of all products, but also the accuracy of industrial automatic transmitter manufacturers is constantly improving, from 0.2 to 0.1. By expanding its core expertise, it can also change other products that measure flow and temperature, 3151 intelligent liquid level transmitter produced by Huaheng instrument level transmitter manufacturer is relatively important instrument in the process of industrial production in Northwest China. The principle that the measured hydrostatic pressure is directly proportional to the liquid height is adopted. The hydrostatic pressure is converted into electrical signal by the piezoresistive effect of diffused silicon or ceramic sensitive elements. After temperature compensation and linear correction, it is converted into 4-20madc standard current signal output.

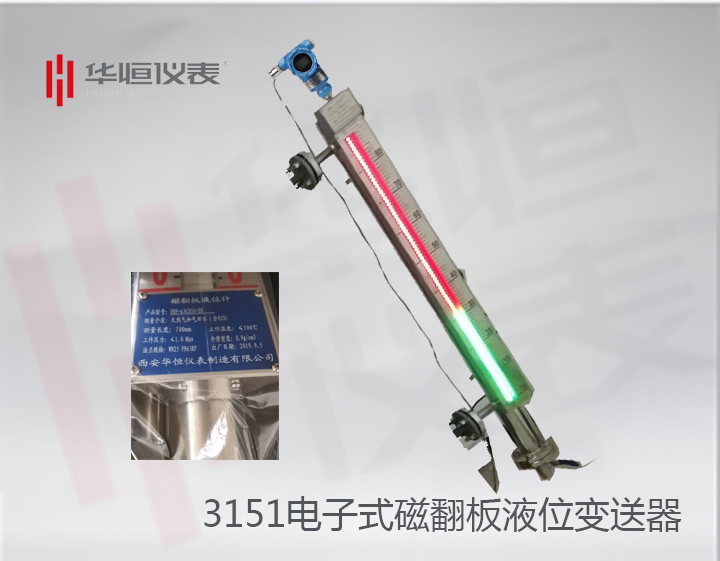

3151智能電子式磁翻板液位計，對于經常在罐區工作的朋友來說太普通不過了，3151智能電子式磁翻板液位計由于其結構簡單易維護，測量數據直觀受到廣大罐區用戶的喜愛，對于他們來說這是一種太熟悉不過的液位測量?jī)x表了。我們?cè)诓簧俟镜漠a(chǎn)品介紹中注意到他們對于磁翻板是否存在盲區的判定給用戶帶來的困惑，華恒儀表做出部分解釋
3151 intelligent electronic magnetic flap liquid level meter is too common for the friends who often work in the tank farm. Because of its simple structure and easy maintenance, the measurement data of 3151 intelligent electronic magnetic flap liquid level meter is loved by the majority of tank farm users. For them, it is a kind of liquid level measuring instrument that they are too familiar with. In the product introduction of many companies, we noticed that they were confused about whether there was blind area in the magnetic flap, and Hua Heng instrument made some explanations
我們認為無論是什么產品都不可能是十全十美的，而儀表產品設計和使用中出現盲區也是一個非常正常的現象。只要我們?cè)谑褂眠^(guò)程中能夠予以正確的認識，并加以重視，就能夠有效地規避這些問題帶來的影響。那么，用戶在遇到這些問題應該如何解決，如何避免這類問題的發生呢？潤中科技的技術人員帶來分析其產生的原因及規避的方法，希望給大家的工作帶來幫助。
We think that no matter what product is, it is impossible to be perfect, and it is also a very normal phenomenon that there is a blind area in the design and use of instrument products. As long as we can correctly understand and pay attention to it in the process of use, we can effectively avoid the impact of these problems. So, how to solve these problems and how to avoid them? The technicians of Runzhong science and Technology Co., Ltd. will analyze the causes and avoid the methods, hoping to bring help to everyone's work.
我們*先分析3151智能電子式磁翻板液位計為何存在盲區，3151智能電子式磁翻板液位計盲區影響液位測量嗎？ 我們知道磁翻板測量管內部的浮子本身是必須有長度的，即使再短也有長度，那么當液位為零或者接近零的時候，為了達到精確測量的效果，那么浮子肯定是以零液位起始上浮測量，所以盲區必須考慮到零液位以下浮子的長度。這就解釋了為什么3151智能電子式磁翻板液位計存在盲區，而這些盲區距離都是固定的，這是由于產品本身結構的原因造成的。對于3151智能電子式磁翻板液位計具體到以下面兩種情況，有著不同計算液位的方法：
We * first analyze why there is a blind area in the 3151 intelligent electronic magnetic flap liquid level meter. Does the blind area of the 3151 intelligent electronic magnetic flap liquid level meter affect the liquid level measurement? We know that the floater inside the magnetic flap measuring tube must have a length, even if it is short, so when the liquid level is zero or close to zero, in order to achieve the effect of accurate measurement, the floater must float up from the zero liquid level, so the length of the floater below the zero liquid level must be considered in the blind area. This explains why there are blind areas in 3151 intelligent electronic magnetic flap liquid level gauge, and the distance between these blind areas is fixed, which is caused by the structure of the product itself. For the 3151 intelligent electronic magnetic flap liquid level meter, there are different methods to calculate the liquid level in the following two cases:
一、如果3151智能電子式磁翻板液位計罐體的底端下面空間足以滿足盲區部分的距離，在設計選型的時候，法蘭安裝的時候肯定是在罐體底端與頂端之間，這時候計算液位的時候就要考慮盲區。
1、 If the space under the bottom end of 3151 intelligent electronic magnetic flap liquid level gauge tank body is enough to meet the distance of the blind area, during the design and selection, the flange installation must be between the bottom end and the top end of the tank body. At this time, the blind area should be considered when calculating the liquid level.
二、罐體的底端下面空間足以滿足盲區部分的距離，那么這時候3151智能電子式磁翻板液位計兩法蘭中心之間的距離就是滿液位距離，不用考慮盲區。
2、 The space below the bottom of the tank body is enough to meet the distance of the blind area. At this time, the distance between the two flange centers of the 3151 intelligent electronic magnetic flap liquid level gauge is the full liquid level distance, without considering the blind area.
以上兩種情況是針對側裝3151智能電子式磁翻板液位計的，而如果用戶采用的是頂裝3151智能電子式磁翻板液位計，那么3151智能電子式磁翻板液位計就不存在盲區問題了。
The above two situations are aimed at the side mounted 3151 intelligent electronic magnetic flap liquid level meter. If the user adopts the top mounted 3151 intelligent electronic magnetic flap liquid level meter, there is no blind area problem in the 3151 intelligent electronic magnetic flap liquid level meter.
華恒變送器廠家憑借自身?yè)碛械膫鞲衅骱椭悄茈娐钒搴诵募夹g(shù)，可以根據客戶要求，低成本對核心技術進行延伸變形，實現個性化產品定制。主要產品有SMART（斯瑪特）系列壓力變送器、多參數變送器、流量器、溫度傳感器和物位（液位變送器廠家，為我國電力、石油、化工、冶金、水泥、礦業等行業提供了高性能價格比的工業自動變送器廠家產品.
With its own sensor and intelligent circuit board core technology, Huaheng transmitter manufacturers can extend and transform the core technology at low cost according to customer requirements to achieve personalized product customization. The main products are smart (SMART) series pressure transmitter, multi parameter transmitter, flowmeter, temperature sensor and level (liquid level transmitter manufacturer, which provides high performance price ratio industrial automatic transmitter manufacturer products for China's power, petroleum, chemical, metallurgical, cement, mining and other industries
